Will the TX-NR6100 damage the R-50M?

No. The TX-NR6100 is rated for the R-50M's 8 Ω load as it comes.

What impedance setting should I use for the R-50M on the TX-NR6100?

None: the R-50M is 8 Ω, and the TX-NR6100 needs no change for it.

Is the TX-NR6100 powerful enough for the R-50M?

More than you need. From a seat 2 m away, loud 95 dB movie peaks take about 8 W per speaker, and the TX-NR6100 is rated 100 W per channel. Cinema reference level, 105 dB peaks, takes about 80 W.

Does the Klipsch R-50M work with the Onkyo TX-NR6100?

Verdict

Yes

The R-50M is 8 Ω, and the TX-NR6100 is rated for speakers down to 4 Ω, so it drives them as is.

Speaker load

8 Ω speaker, rated down to 4 Ω

Power

100 W

More than you need. About 8 W gives 95 dB peaks at 2 m

How to connect them

Connect the R-50M speakers to the TX-NR6100's front terminals with speaker wire.
Run AccuEQ with its microphone at your seat.

Plan the R-50M and TX-NR6100 in your own room.

Draw your room in 3D, place both, and see every connection checked and how loud they play at your seat. Designing is free.

Build it in your room

The specs that decide it

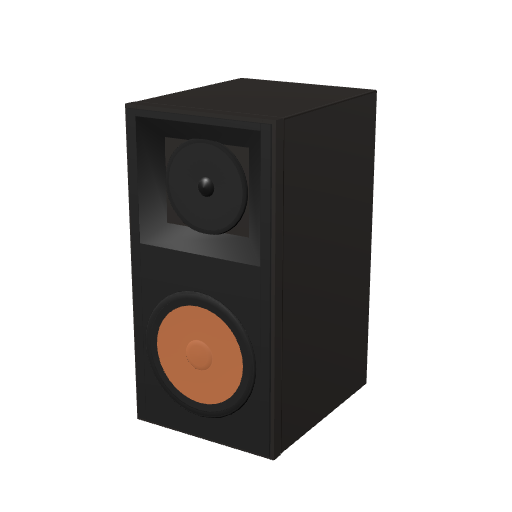

Klipsch R-50M

Impedance: 8 Ω
Sensitivity: 92 dB (2.83 V, 1 m) in-room
MSRP: $425 a pair (MSRP, September 2026)

All R-50M specs and pairings

Onkyo TX-NR6100

Amplifier channels: 7
Height formats: Dolby Atmos, DTS:X
Lowest speaker impedance: 4 Ω
MSRP: $799 each (MSRP, May 2025)

All TX-NR6100 specs and pairings

Questions about the R-50M and TX-NR6100

Does the R-50M work with the TX-NR6100?: Yes. The R-50M is 8 Ω, and the TX-NR6100 is rated for speakers down to 4 Ω, so it drives them as is.
Will the TX-NR6100 damage the R-50M?: No. The TX-NR6100 is rated for the R-50M's 8 Ω load as it comes.
What impedance setting should I use for the R-50M on the TX-NR6100?: None: the R-50M is 8 Ω, and the TX-NR6100 needs no change for it.
Is the TX-NR6100 powerful enough for the R-50M?: More than you need. From a seat 2 m away, loud 95 dB movie peaks take about 8 W per speaker, and the TX-NR6100 is rated 100 W per channel. Cinema reference level, 105 dB peaks, takes about 80 W.

Swap one of them

References

Specs verified against the manufacturer's published data. Last checked September 15, 2026.
